Hot plate welder MSH-8060S is designed to weld large thermoplastic by heating. Machine max welding square is 800*600 (mm), and effective welding square is 750*600 (mm). This hot plate welding machine tooling action forced by servo motors in high precision in 0.02mm.

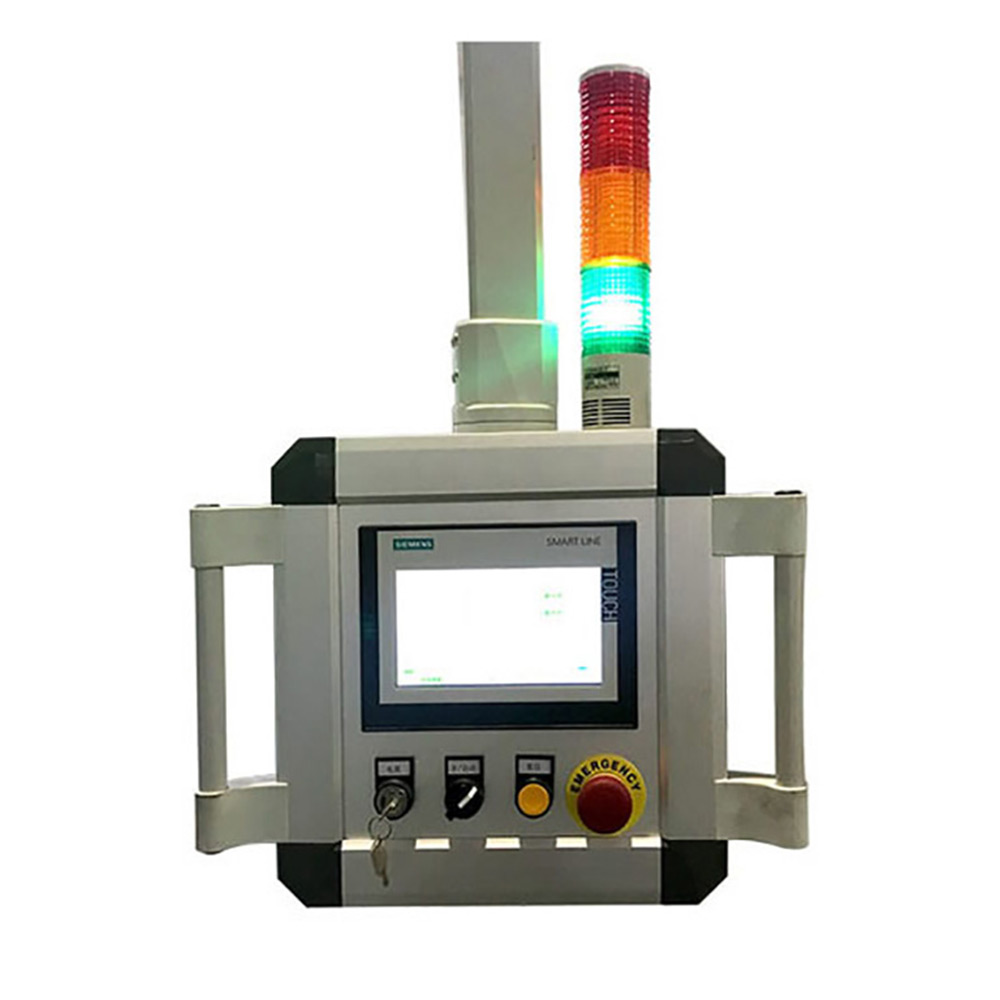

Machine applies PLC to control action sequence. MP-SONIC deigned temperature controlling system control hot platen melting temperature in PID. Through change temperature control system, it can achieve non-contact plastic welding by infrared system. Machine control temperature by temperature modules of PLC. All machine parameters is set on HMI.
Basic Features:
Servo control system in high precision;
Fast action speed, especially good for low temperature hot platen welding;
Achieves action speed process control (speed-steps-control);
Hot platen melting temperature controlled by PID, welding temperature is controlled in stability and high precision;
Heater error ID is detected and indicated on HMI for easy fault-shooting;
Welding parameters storage is available to manage hot p late welding process;
Alarm message/fault history is recorded for hot plate welding quality management;
Optical fence at front and safety door at sides and rear is designed for security;
Vacuum generator and pneumatic clip system is design to hold plastic parts during hot plate welding;
Ejection function by pneumatic system is designed helping remove welded parts from jigs;
Parts detection function is available to avoid operation without parts loading.
Optional Feature:
1. Auto security front door;
2. Auto jig loading system for quick tooling change-over;
3. Preheating device for efficient welding production;
4. SPC for production management;
5. E-tech for internet;
6. Terminal for printer;
7. Auto electrical plugs and air connectors for jig;
8. Tooling automatic identifying to identify hot plate welding and load welding parameter automatically;
9. UPS for control system;
10. Vacuum pump for high vacuum pressure;
11. Accessories detection to avoid welding unloading small parts;
12. GT sensor function to ensure parts is loaded in right position before operation for plastic welding in high precision.
Specification:
Power Source: 380V 3P? 50/60Hz
Air Source: 0.5Mp;
Dimension:L1550*W2200*H2562 (mm);
Jig Base Plate: 880*650
Suggested Welding Square: <750*600 (mm)
Welding Square: 800*600(mm)
Jig Transmission: High Precision Screw Bar;
Hot Platen Transmission: Gear Bar;
Clips: 4+4;
Accessory Detector on Jig: 6+6
Cavity Parts Detector: 2+2
Temperature Control: 8 Sets
Safety： Optical fence + Auto front door
Vacuum: Vacuum Generator
Cooling for Control Cabinet: Fan
Smoke Exhaust: Exhaust Fan
Heating Alarm: Heating current supervision and alarm
