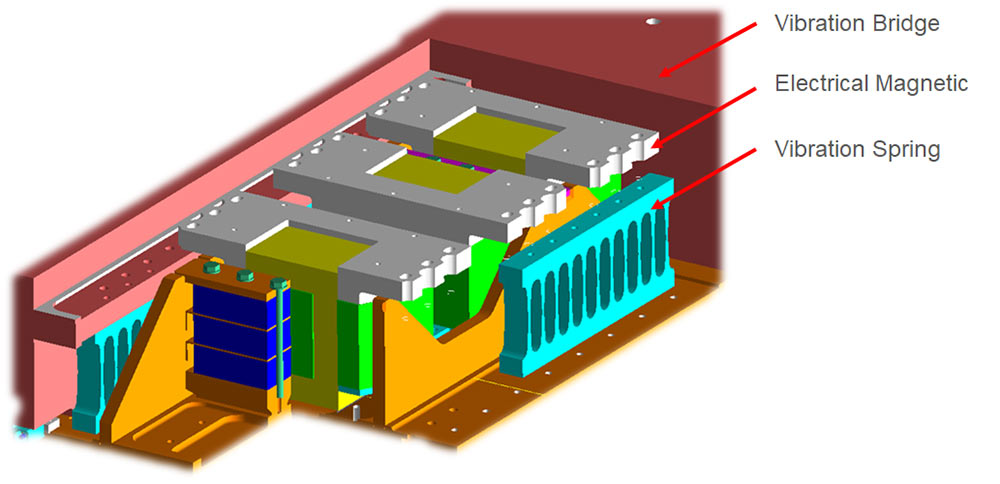

Because of its well-known advantage of high welding ability, linear vibration friction welding is mostly applied for thermoplastic joining with challenging requirement, especially applied to weld parts in big measurement, complex geometric ship design & challenging material. Vibration welding is a type of welding technology apply friction generated by linear vibration in high frequency to melt plastic material at the contacting surface between two plastic parts halves to be welded to achieve jointing result. During welding, the vibration is cased by electrical magnetic together will vibration spring driven by a convertor which is called as amplifier.
Read more about vibration welding technology.

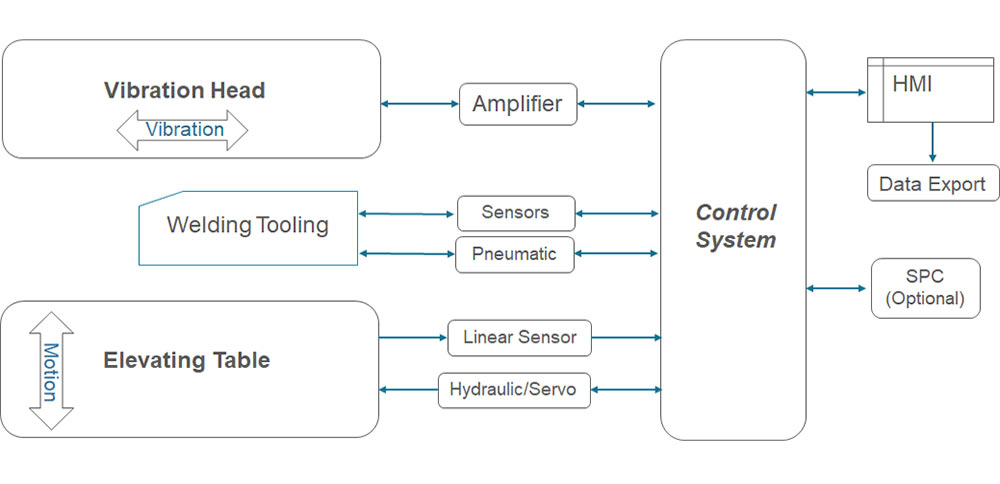

Vibration Welding Control Principle

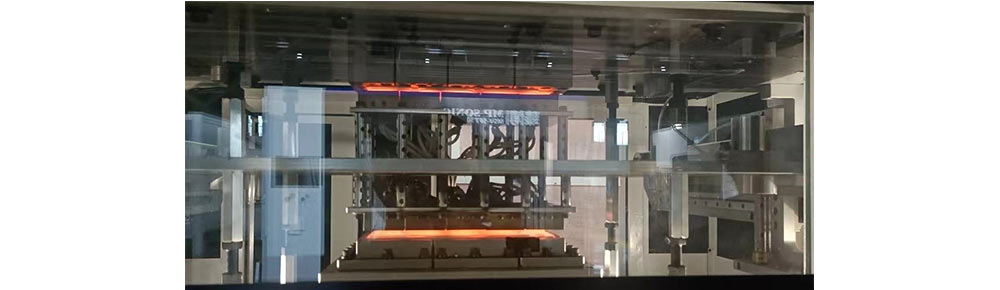

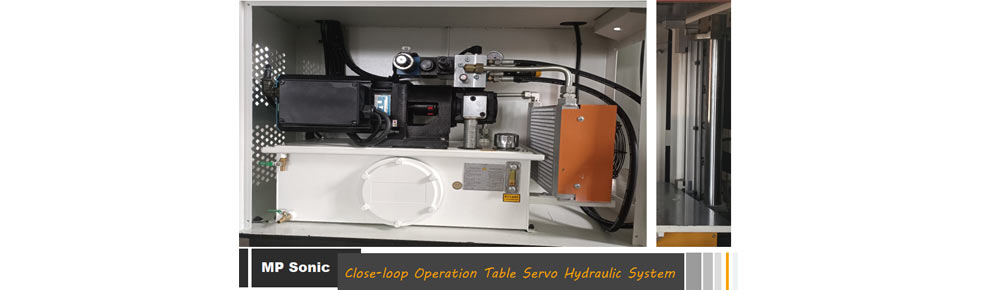

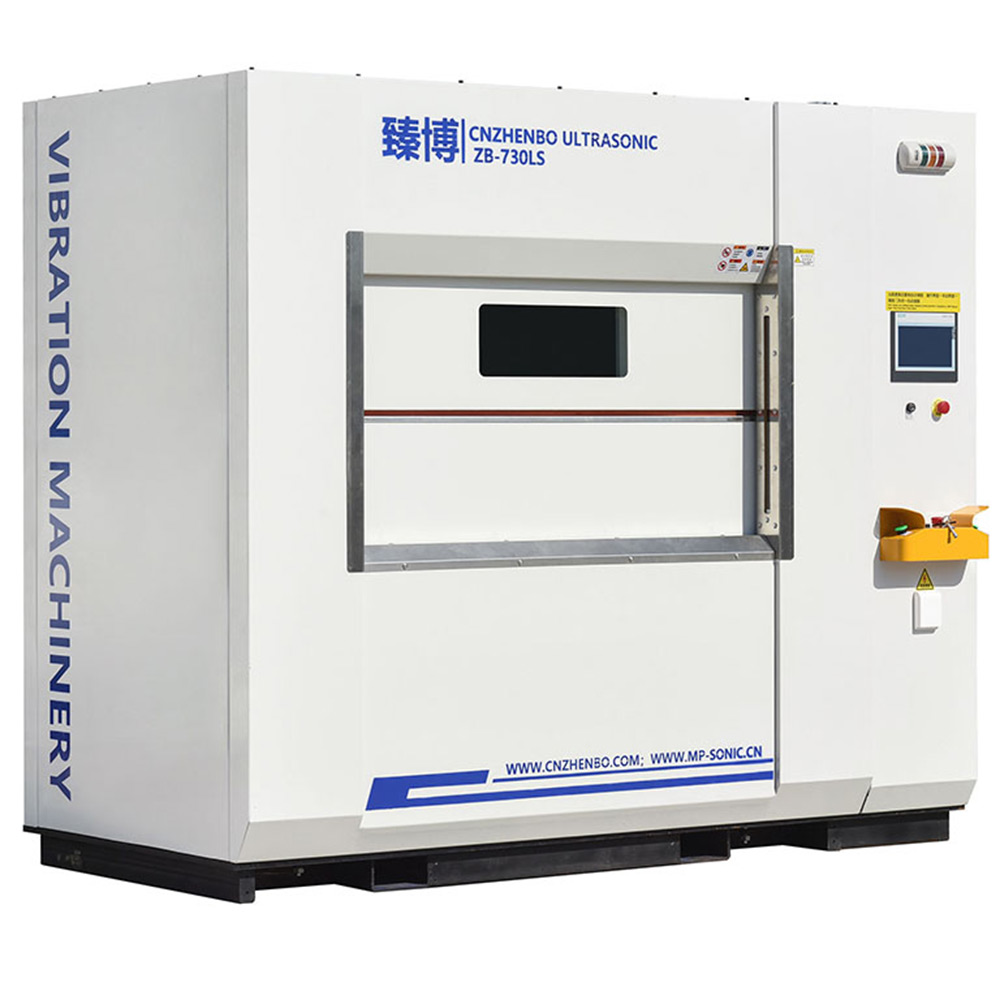

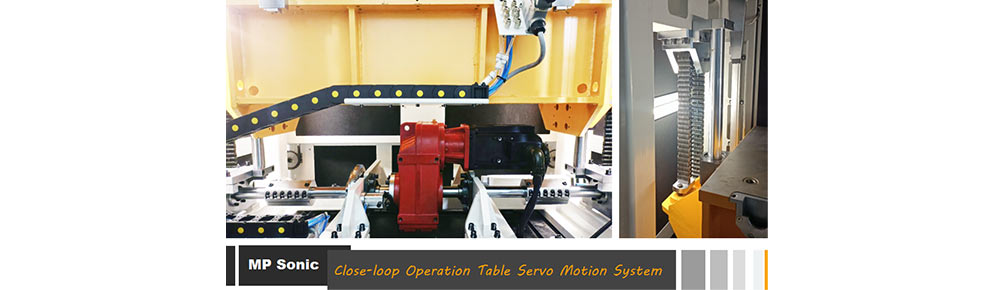

MSV-730LS?is a vibration plastic welder in a?big?specification which?is designed to weld plastic parts in challenging measurement and material. MSV-730LS linear vibration welder can be applied for weld automotive Instrument panel, tail lamp,?glove box, glove box lid, engine air-in manifold, etc. The upper jig weight is up to?70KG, and the vibration amplitude can reach 1.8mm. For clear vibration thermoplastic joining, it can add infrared system for pre-heating?as a optional feature. Machine applies servo hydraulic to control forcing pressure during vibration welding, linear sensor is applied to inspect and control vibration welding depth. Welding process steps control is available for perfect welding result.

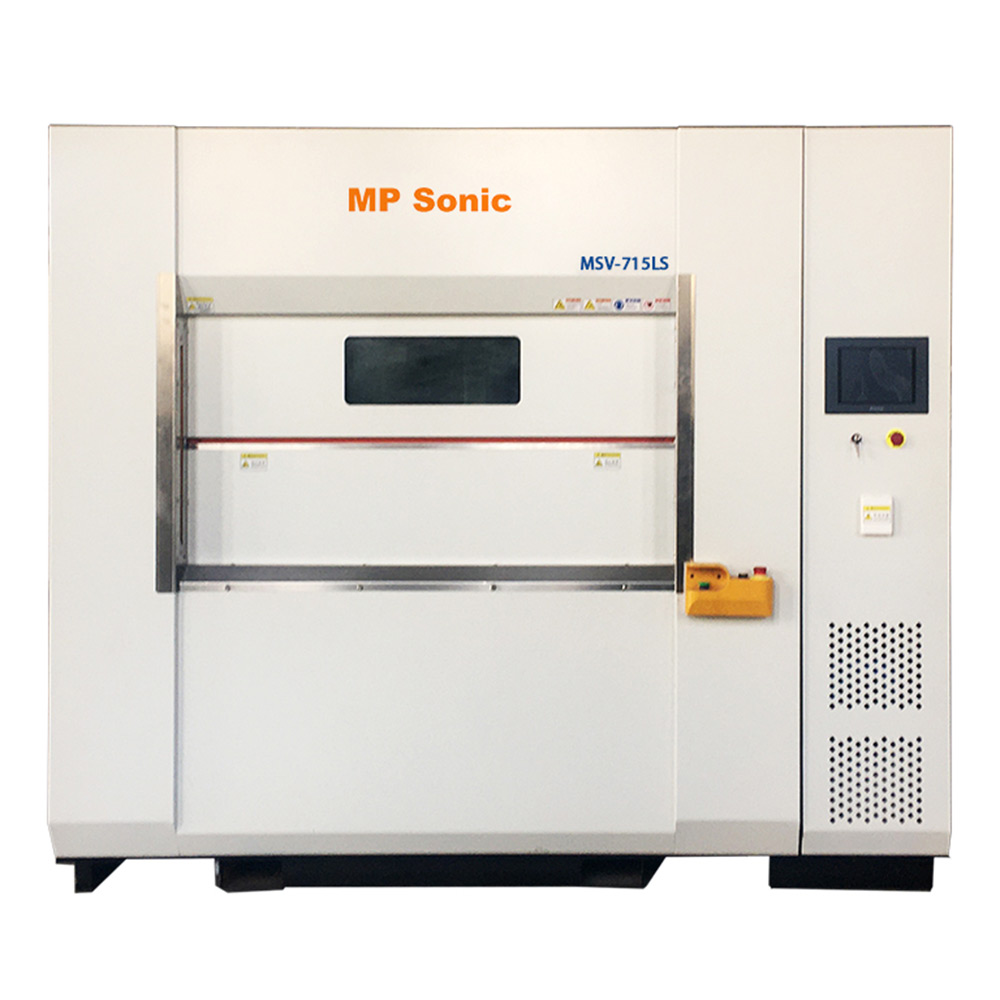

MSV-715LS?is a vibration plastic welder in a medium specification which can be applied for plastic welding in the most measurement. MSV-715LS linear vibration welder can be applied for weld automotive Instrument panel, tail lamp, toil lid, etc. The upper jig weight is up to 55KG, and the vibration amplitude can reach 1.8mm. For clear vibration thermoplastic joining, it can add infrared system for pre-heating?as a optional feature. Machine applies servo hydraulic to control forcing pressure during vibration welding, linear sensor is applied to inspect and control vibration welding depth. Welding process steps control is available for perfect welding result.

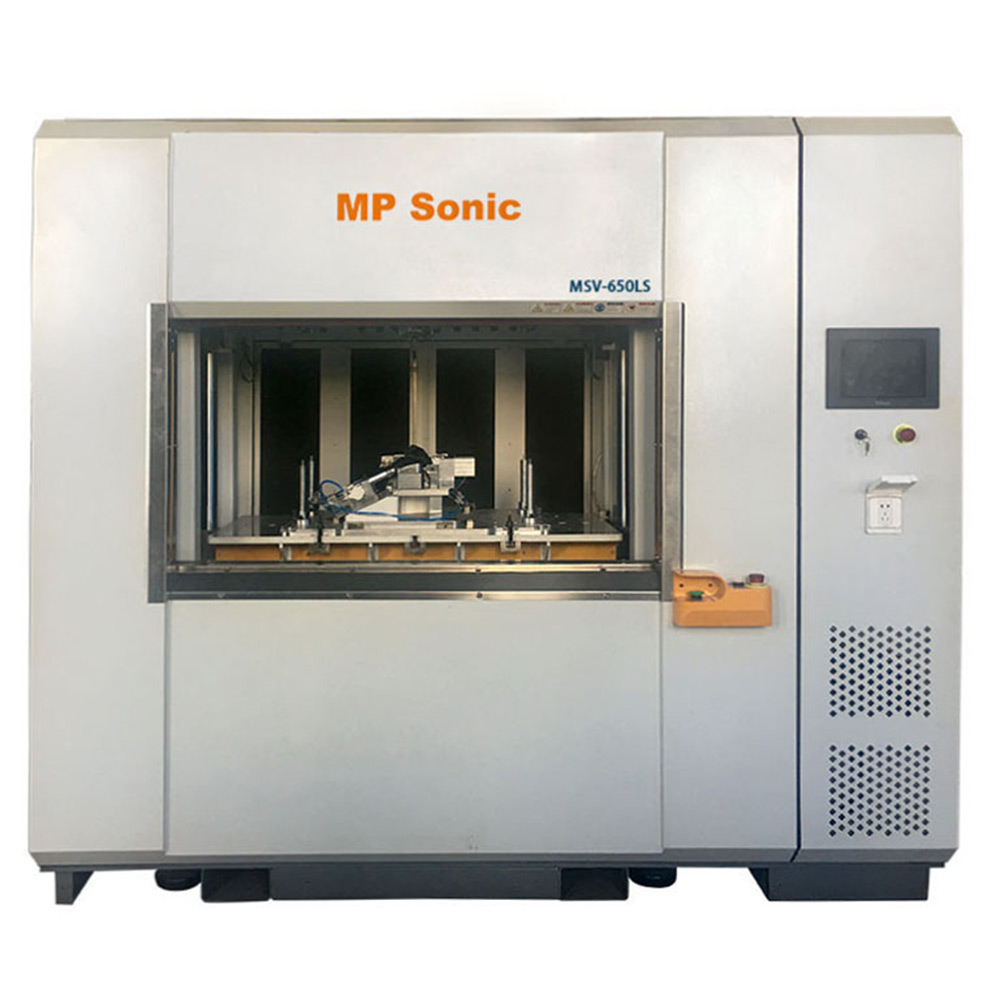

MSV-650LS?is a medium specification which can be applied or the most range of plastic welding which is over than ultrasonic plastic welding ability, its viration loading ability of upper jig weight is 40KG. MVS-650LS linear vibration welder can be applied in house-held appliance industry such as welding for toilet lid, and automotive industry such weld tail lamp, instrument panel, air inlet manifold, etc.
MSV-630LS is a medium specification which can be applied or the most range of plastic welding which is over than ultrasonic plastic welding ability, and can be applied for the welding of such thermoplatic material which is out of hot palte welding ability. MVS-630LS linear vibration welder can be applied in house-held appliance industry such as welding for toilet lid, and automotive industry such weld tail lamp, instrument panel, air inlet manifold, etc.
MSV-515LS is a linear vibration fricion plastic welding machine in small specification which is mostly applied to welding plastic welding? out of ultrasonic? welding ability, or for the welding of such thermoplatic material which is out of hot palte welding ability. MVS-515LS linear vibration welder can be applied to weld signal light of car, nylon connector, pipe nozzle, etc.
MSV-830LS & MSV-930LS is a vibration plastic welder in a super big specification which is designed to weld plastic parts in challenging measurement and material. MSV-830LS linear vibration welder is mostly applied for the assembling of automotive dashboard, such as welding air-duct, conditioner air channel, airbag, screen demist duct, , etc. Machine is designed with orbital construction to meet complex dashboard geometric design. Machine applies servo hydraulic to control forcing pressure during vibration welding, linear sensor is applied to inspect and control vibration welding depth. Welding process steps control is available for perfect welding result.

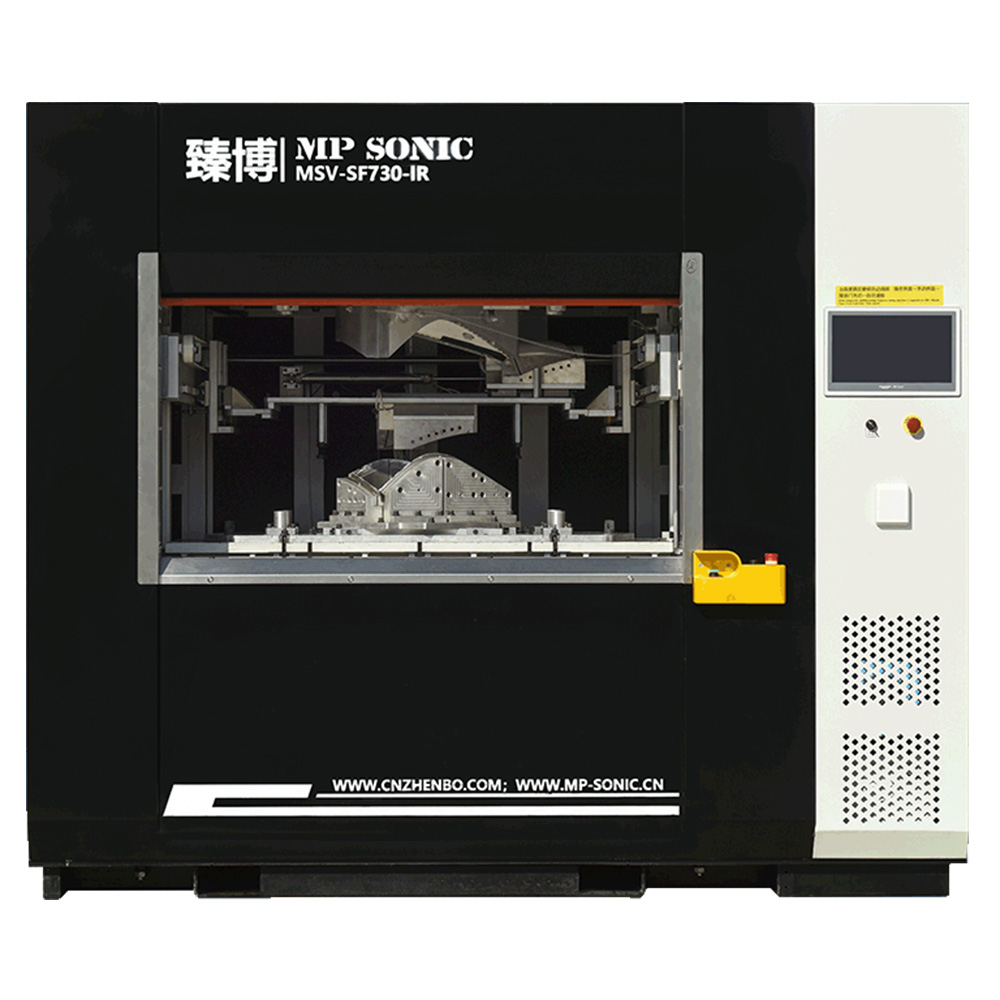

MSV-IR series vibration welding machine can applied both MSV-LS series vibration system or MSV-SF series vibration system according to customer requirement. MSV-IR series machines most applied for tail lamp welding.

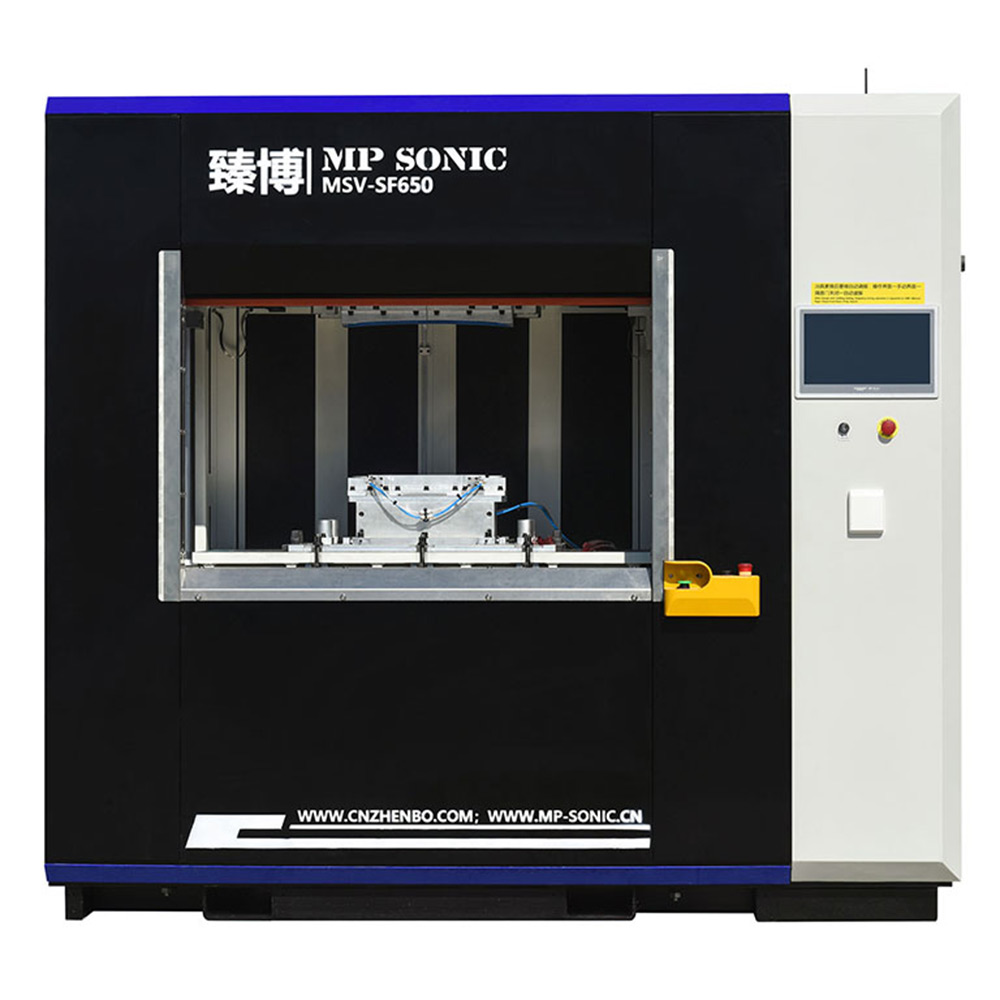

MSV-SF Series?vibration welding machine welding machine applies the newest Joining technology,?SFVW?technology, developed by?CNZHENBO |?MP Sonic?to realize the excellent vibration plastic welding.
MP Sonic?Middle-high frequency?linear?vibration friction welder is manufactured by CNZHENBO | MP Sonic applying its?middle-high frequency vibration system, belonging to the?MSV-LS?Series?welding machine made by MP Sonic.?Machine welding frequency can be max to 280Hz, while the welding amplitude is?0.8~1.8mm. Machine specification?covers vibration loading ability (upper jig weight) from 15KG to 70 KG.
